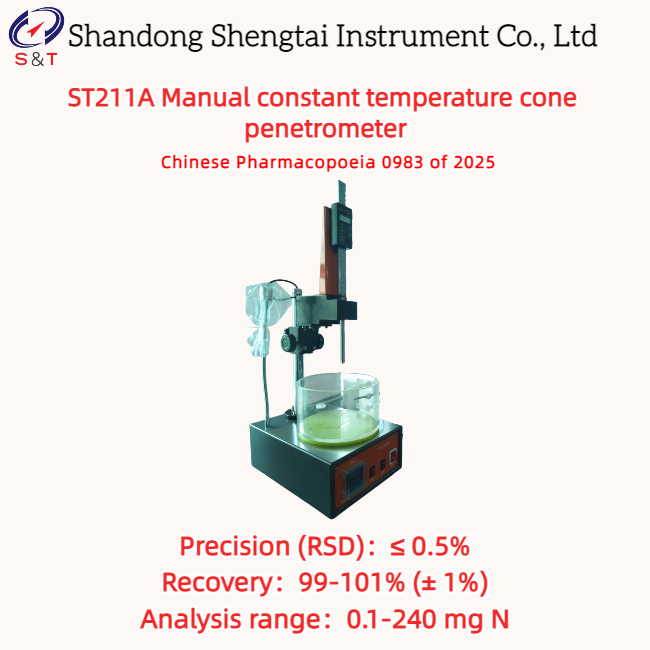

ST211A Manual constant temperature cone penetrometer
The ST211A manual constant temperature cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the 2025 Pharmacopoeia 0983 cone penetration measurement method. It is mainly suitable for semi-solid substances such as ointments, eye ointments, and commonly used matrix materials (such as Vaseline, lanolin, beeswax) to control their properties such as softness, hardness, and viscosity, and avoid affecting the coating ductility of drugs.
Main technical features:
● Using a digital display to show the cone penetration value, it is intuitive and eye-catching.
● It has the functions of coarse and fine adjustment of the lifting frame, easy adjustment, and accurate needle alignment.
● Equipped with a heating and cooling constant temperature bath, automatic temperature control of the water bath, and high cost-effectiveness of the instrument.
Main technical parameters and indicators:
| Measurement range |
0-700 cone penetration
(digital display shows 0-70mm)
|
| Cone entry timing control device |
error＜± 0.1s |
| Resolution |
0.01mm |
| Needle insertion accuracy |
± 1 cone penetration degree |
| Temp measurement range |
10-50 degrees |
| Temp control accuracy |
25 ± 0.1 ℃ |
| Temperature control method |
high-precision digital temperature controller, capable of maintaining a constant temperature up to the standard requirement of 25 degrees |
| Standard cone |
102.5 ± 0.05g, in compliance with the 2025 Pharmacopoeia |
| Instrument size |
330 * 225 * 530mm |
| Instrument weight |
7.3kg |
| Package size |
450 * 350 * 550mm |
| Package weight |
12.2kg |
| Constant temperature bath size |
280 * 155 * 195mm |
| constant temperature bath weight |
2.4kg |
| Thermostatic bath packaging |
395 * 285 * 480mm |
| Constant temperature bath packaging weight |
6.1kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number |
Name |
specifications |
Quantity |
Note |
| 1 |
Cone penetration tester |
Host |
1 unit |
|
| 2 |
Cone No.1 |
|
1 piece |
|
| 3 |
Sample box No.1 |
|
1 piece |
|
| 4 |
Heating cooling constant temperature bath |
|
1 unit |
|
| 5 |
Power line |
|
1 piece |
|
| 6 |
Certificate of Conformity Warranty Card |
|
1 copy |
|
| 7 |
Instructions |
|
1 copy |
|
